Built around a silicon piezoresistive differential pressure sensor, this transmitter outputs standard industrial signals and is suitable for industrial process control, flow measurement, medical instruments, aerodynamic measurement, hydraulic equipment, a
Get a Quote
For Differential Pressure Measurement and Industrial Signal Output

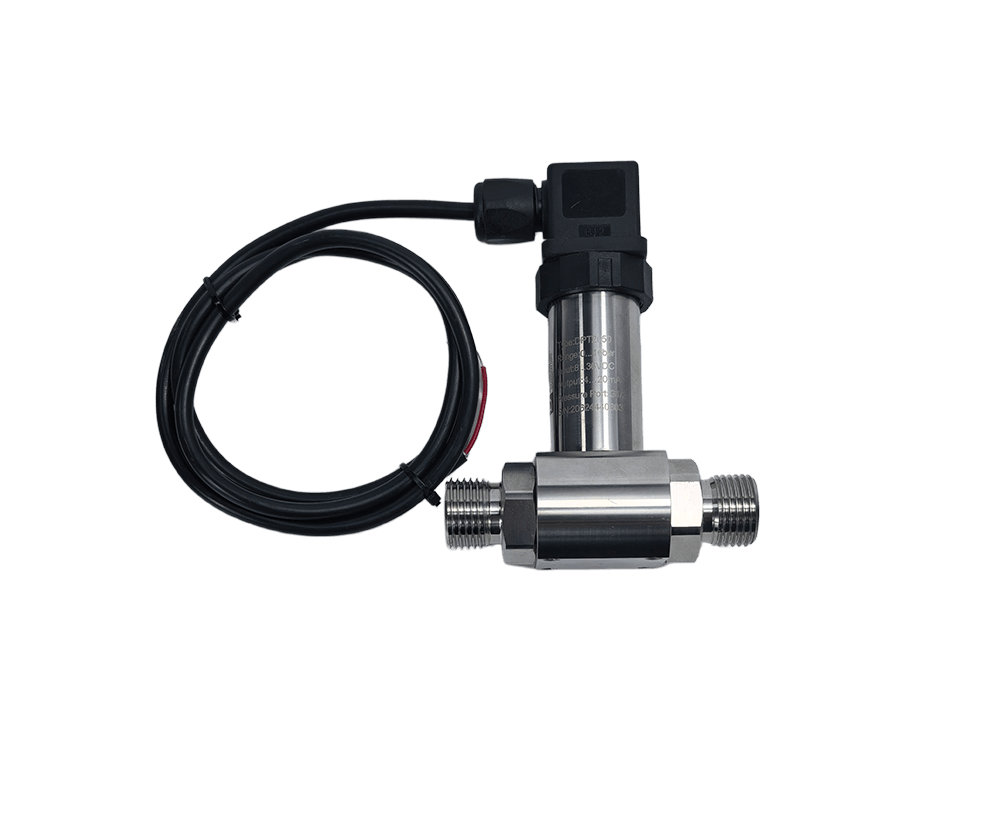

The DPT2050 differential pressure transmitter uses a silicon piezoresistive differential pressure sensor as the core element, with temperature compensation, digital circuit correction, and signal conditioning to output standard industrial signals.
Its full stainless steel housing provides strong corrosion resistance.
It provides stable differential pressure signals for industrial processes, flow measurement, and hydraulic and pneumatic equipment.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | Differential pressure transmitter |
Range | 0-10kPa ... 3.5MPa |
Overload Pressure | 1.5 times rated pressure |
Accuracy | ±0.25% F.S. (100kPa...3.5MPa) / ±0.5% F.S. (0...100kPa) |
Stability | <0.5% F.S./year |
Operating Temperature | -10℃ to 60℃ |
Storage Temperature | -40℃ to 100℃ |
Measured Medium | Gases or liquids compatible with 304 and 316L stainless steel, fluororubber, or nitrile rubber |
Output Signal | 4-20mA / 0-10V / RS485 |
Power Supply | 10-36VDC / 12-36VDC / 10-30VDC |
Electrical Connection | DIN43650A / M12 waterproof cable outlet / GX12 aviation connector / M12 4-pin aviation connector |
Enclosure Protection Rating | IP65 |
Pressure Type | D (differential pressure) |
Certifications | CE / RoHS |
