Used for fluid media pressure measurement, with corrosion resistance, wear resistance, and digital compensation for complex environments.
Get a Quote
For Pressure Measurement in Complex Environments

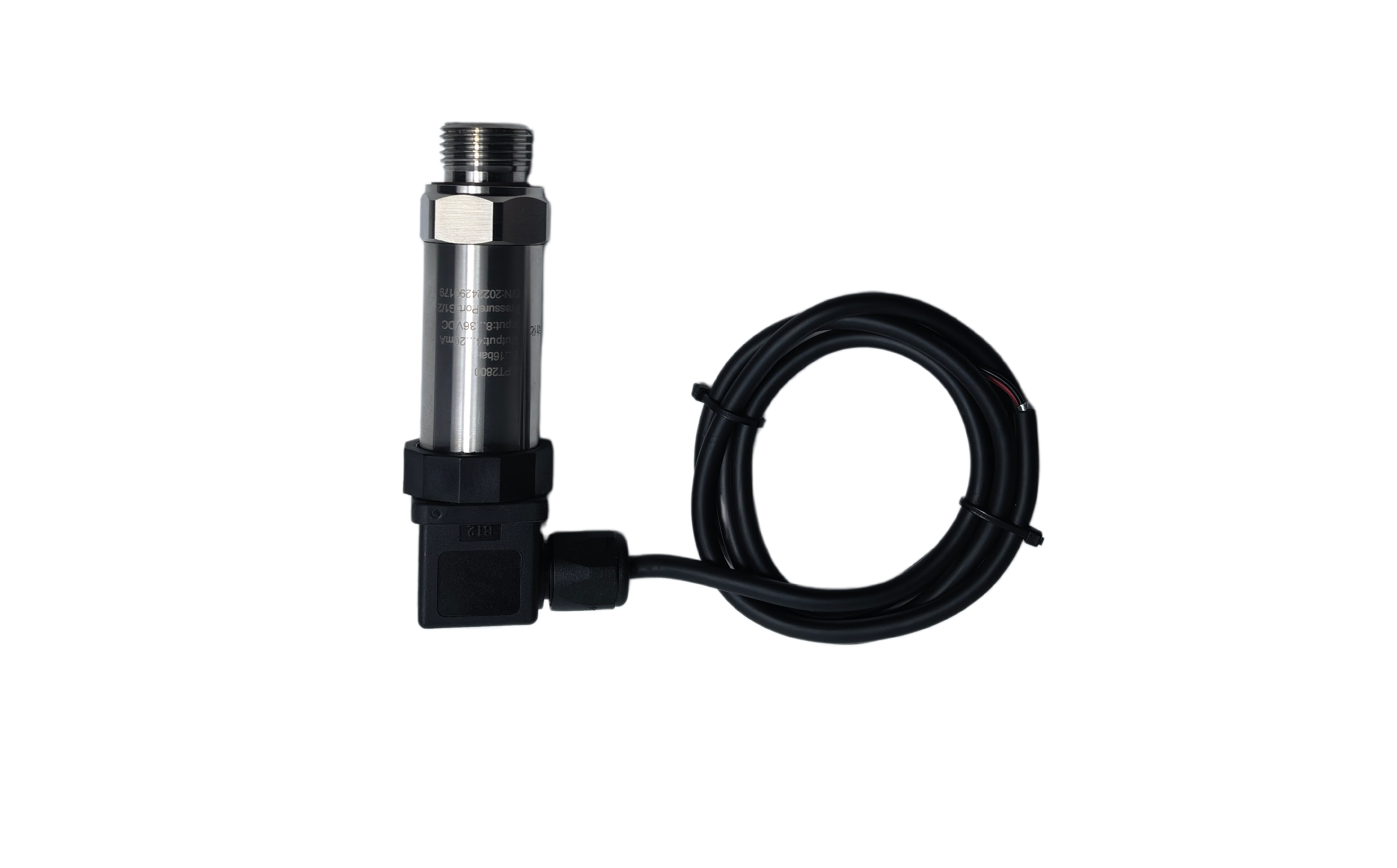

The DPT2800 pressure transmitter is widely used for fluid media pressure measurement in fire protection, water treatment, water supply systems, air compressors, pneumatic devices, factory automation, and other test systems.
It uses an oil-filled silicon sensing element with high overload capacity, corrosion resistance, and wear resistance.
With ASIC technology and digital compensation, it can be used in a wide range of complex environments.
It provides standard signal output for pressure measurement and equipment operation monitoring in complex environments.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | Pressure transmitter |
Range | -100kPa...0-1kPa...60MPa |
Overload Pressure | 1.5 times rated pressure |
Accuracy | ±1.0% F.S. / ±0.5% F.S. / ±0.25% F.S. (depending on range) |
Stability | <0.5% F.S./year |
Operating Temperature | -20℃ to 85℃ |
Storage Temperature | -40℃ to 100℃ |
Measured Medium | Gases or liquids compatible with 304 and 316L stainless steel, fluororubber, or nitrile rubber |
Output Signal | 4-20mA / 0.5-4.5V / 0-5V / 0-10V / RS485 |
Electrical Connection | DIN43650A / M12 waterproof cable outlet / GX12 aviation connector / M12 4-pin aviation connector |
Enclosure Protection Rating | IP54 / IP65 |
Pressure Type | Gauge pressure G / Absolute pressure A |
Certifications | Explosion-proof type E / RoHS / CE |
