Designed for outdoor temperature and humidity detection. It comes standard with a radiation shield for wind and rain protection and is suitable for construction sites, weather monitoring, and other outdoor applications.
Get a Quote
For Outdoor Temperature and Humidity Detection and Environmental Data Acquisition

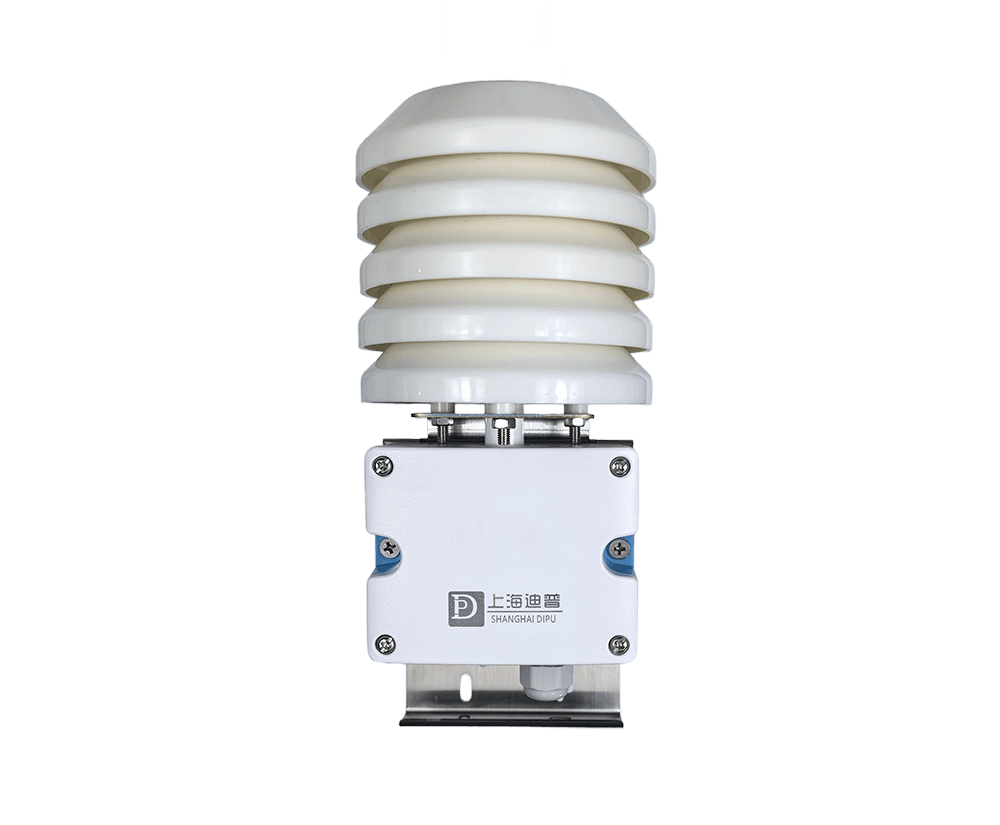

The DPH52 series is designed for outdoor temperature and humidity detection. It includes a radiation shield to protect the sensor in harsh weather conditions.
The product supports current, voltage, and RS485 output modes and can be used in construction sites, weather monitoring, and other outdoor applications.
The number of radiation shield layers and installation height can be adjusted according to site requirements, with a high protection rating.
It provides stable temperature and humidity input for outdoor environmental monitoring and platform data acquisition.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | Outdoor temperature and humidity transmitter |
Relative Humidity Range | 0%-100% RH |
Humidity Output | RS485/Modbus / 0-10VDC / 4-20mA optional |
Humidity Accuracy | ±2% RH @20℃ & 20%-80% RH |
Response Time | ≤10s (20℃, slow air flow) |
Temperature Range | 0-50℃ / -20-60℃, etc. |
Temperature Output | 4-20mA / 0-10VDC / RS485/Modbus optional |
Power Supply | Voltage/485 type: 12-35VDC / 24VAC±20%; current type: 19.5-35VDC (RL=500Ω) / 9.5-35VDC (RL=0Ω) |
Enclosure Material | PC enclosure, PC probe, ABS protective shield |
Operating Environment | -20℃ to 60℃, 5%-95% RH (non-condensing) |
Protection Rating | IP65 |
