Designed for multi-interface and multi-signal access with edge processing capabilities. It features Ethernet, composite serial ports, CAN, DI/DO, and relay outputs, supporting on-site data acquisition, comprehensive processing, and control linkage.
Get a Quote
Industrial Edge Device for Multi-Signal Access and Integrated Processing

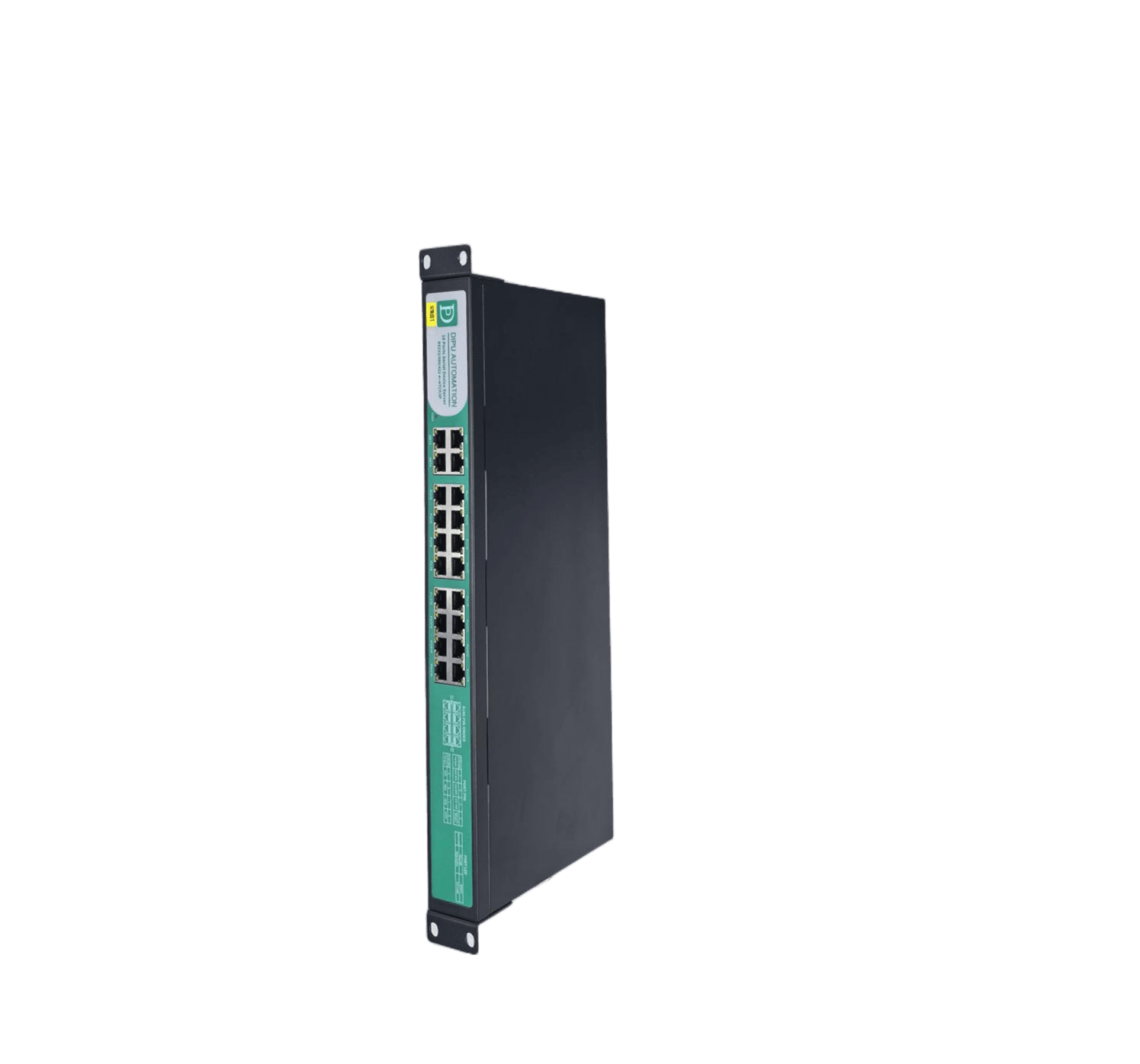

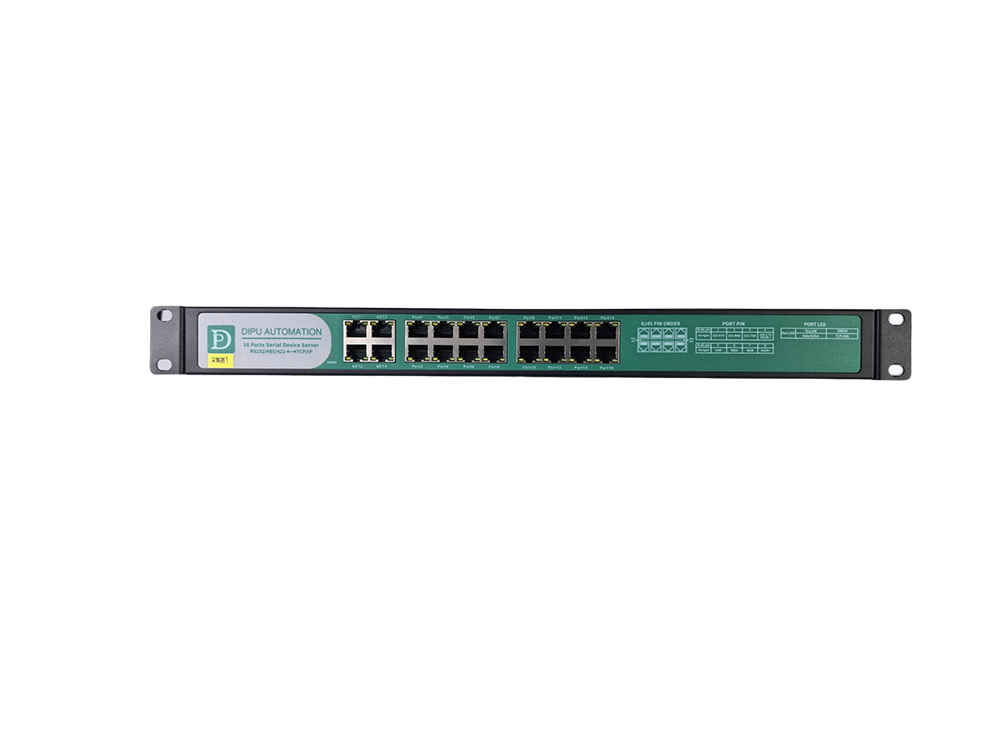

The DPC2-2-16 is an industrial-grade multifunctional integrated processor with 2 Ethernet ports, 16 combined serial ports, 1 CAN channel, 4 built-in relay outputs, and 6 DI acquisition channels.
The product supports dual IP addresses, single or dual power input, visual PC configuration software, and web-based configuration for flexible communication parameter settings.
It supports Ethernet, serial, and CAN communication, as well as the standard Modbus protocol. It is suitable for field access and processing of multiple devices and signal types.
It consolidates and processes multiple types of field signals, providing a stable data and control foundation for monitoring platforms, control systems, and field linkage.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, default settings, and register addresses are available in the downloadable product data. |
Parameter | Details |
Product Type | Industrial-grade multifunctional integrated processor |
Network Interface | 2 x 10/100M adaptive Ethernet ports, supporting dual IP addresses |
Serial Channels | 16 x RS232/485 combined serial ports |
CAN Channel | 1 CAN channel |
Relay Channels | 4 normally open / normally closed relays |
Acquisition Channels | 6 DI channels (active/passive) |

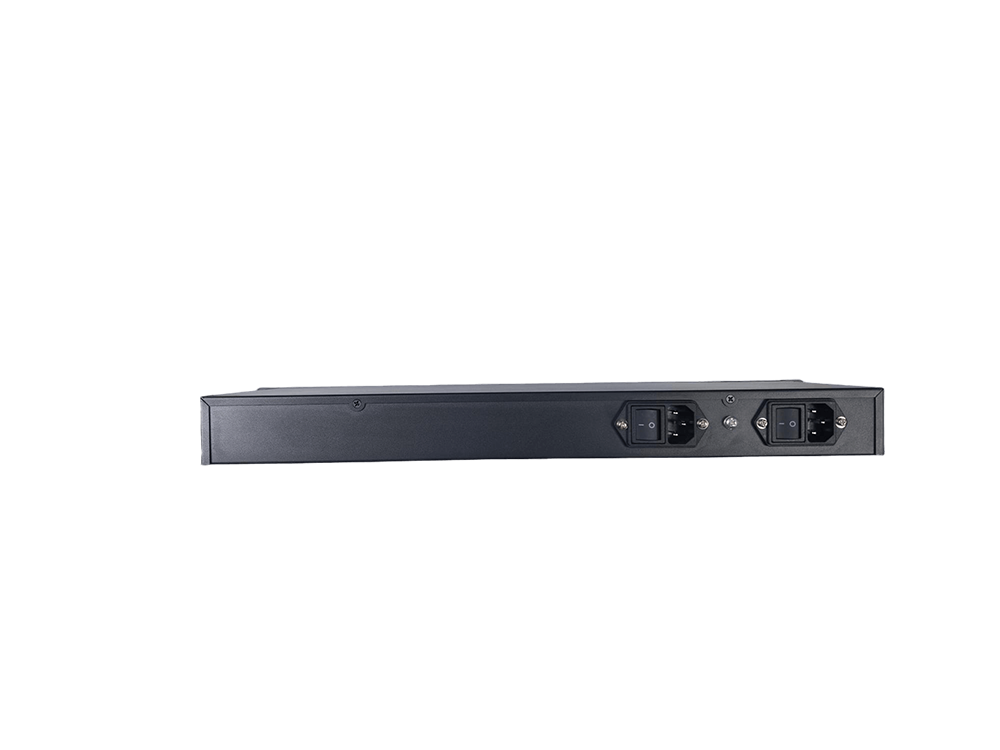

Power Input | AC 85-305V / DC 100-430V |
Power Output | 2 x DC 12V/0.2A |
Serial Baud Rate | 1200-115200 bps |
CAN Communication Rate | 5-1000K |
Power Consumption | <6.5W |
Operating Temperature | -40℃ to 80℃ |
Operating Humidity | ≤95% RH |
Configuration Method | Web page / PC configuration software |
